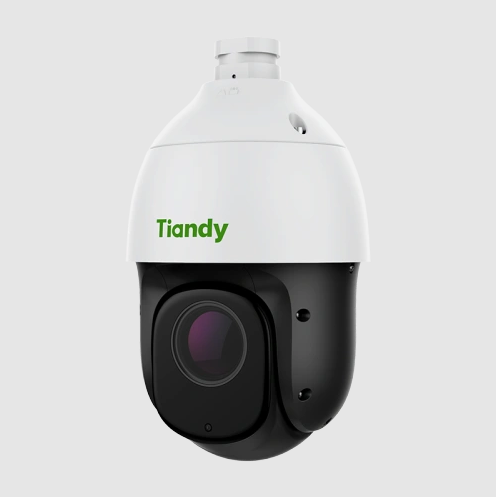

Tiandy 2MP 23X IR PTZ Camera TC-H324S
₨ 59,000
Spec:23X/I/E/V3.0
|
Camera |
|
|
Image Sensor |
1/2.8″CMOS |
|
Min. Illumination |
Color:0.001lux@ (F1.5,AGC ON),B/W:0lux with IR |
|
Shutter Time |
1s~1/100000s |
|
Day&Night |
IR-cut filter with auto Switch (ICR) |
|
Smart IR |
Yes |
|
WDR |
120dB |
|
S/N |
42dB |
|
Lens |
|
|
Focal Length |
5mm~115mm |
|
Optical Zoom |
23X |
|
Zoom Speed |
<5s |
|
Aperture Range |
F1.5~F3.0 |
|
Aperture Type |
Auto(P-Iris) |
|
Field of View |
55.8°~3.2°(H); 32.2°~1.8°(V); 61°~3.64°(D) |
|
Focus Control |
Auto/Semi-auto/Manual |
|
Close Focus Distance |
1000mm~1500mm |
|
DORI Distance |
Detect:1351m Observe:536m Recognize:270m Identify:135m |
|
Pan&Tilt |
|
|
Pan Range |
360° |
|
Pan Speed |
Manual Speed:0.1°～80°/s Preset Speed:80°/s |
|
Tilt Range |
-16°~90° (Default -3°~90°) |
|
Tilt Speed |
Manual Speed:0.1°～80°/s Preset:80°/s |
|
3D Position |
Yes |
|
Preset |
500 |
|
Cruise |
16,up to 32 presets per cruise |
|
Scan |
8 |
|
Pattern |
8,each with 600s memory or 1000 orders |
|
Scheduled Task |
Preset,Cruise,Scan,Pattern |
|
North Point |
Yes(Manual setting) |
|
Power-off Memory |
Yes |
|
Illuminator |
|
|
IR LEDs |
7 |
|
IR Distance |
Up to 150m |
|
Wavelength |
850nm |
|
IR Irradiation Angle |
Yes |
|
Compression Standard |
|
|
Video Compression |
S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG |
|
Video Bit Rate |
32Kbps~16Mbps |
|
Audio Compression |
G.711A/G.711U/ADPCM_D/AAC_LC |
|
Audio Sampling Rate |
8KHz/32KHz/48KHz |
|
Image |
|
|
Max. Resolution |
2MP,1920×1080@30fps |
|
Main Stream |
PAL:25fps(1920×1080,1280×720,640×480,704×576) NTSC:30fps(1920×1080,1280×720,640×480,704×480) |
|
Sub Stream |
PAL:25fps(704×576,704×288,640×360,352×288) NTSC:30fps(704×480,704×240,640×360,352×240) |
|
Third Stream |
PAL:25fps(352×288) NTSC:30fps(352×240) |
|
BLC |
Yes |
|
HLC |
Yes |
|
AGC |
Yes |
|
3DNR |
Yes |
|
White Balance |
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
|
ROI |
7 Dynamic Areas for Both Main and Sub Stream |
|
OSD |
5 regions(Each region can have a maximum of 127 characters ,up to 1 line); 16*16/24*24/32*32/48*48/64*64/adaptable size; Vector/Lattice |
|
Defog |
Yes |
|
Flip |
Normal/Horizontal Mirror/Vertical Mirror/Inverted Flip |
|
Regional Exposure |
Yes |
|
Regional Focus |
Yes |
|
Demist |
Yes |
|
Feature |
|
|
General Alarm |
Motion Detection; Mask Alarm; Alarm Input |
|
Exceptions Alarm |
Voltage Alarm; Disk Full; Disk R/W Error; Recording Exception; IP Address Conflict; MAC Address Conflict; FTP Server Exception ; Network cable disconnected |
|
Linkage Method |
Send Email; Trigger Sound; Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm Output |
|
Video Analytics |
Human/Vehicle Classification; Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Heatmap; Video Abnormal; Audio Abnormal |
|
Network |
|
|
ANR |
Yes |
|
Protocols |
HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1\v2\v3; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1x; QoS; IPv4; IPv6; PPPoE; SSH; Unicast; Multicast; ARP; RTP; SRTP; FTP; SFTP |
|
System Compatibility |
P2P; ONVIF(Profile S/T/G/M); SDK; CGI; Milestone; RTSP; RTMP |
|
Remote Connection |
≤2 |
|
User/Host |
Up to 32 users. 4 user levels |
|
Client |
Easy7 VMS |
|
Moblie Client |
EasyLive Plus |
|
Web |
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
|
Interface |
|
|
Communication Interface |
1*RJ45 (10/100Base-T) |
|
Audio I/O |
1*Input; 1*Output |
|
Alarm I/O |
1*Switching; 1*Switching,Voltage≤DC24V,Current≤1A |
|
Reset Button |
Yes |
|
On-board Storage |
Built-in Micro SD card slot,up to 512 GB |
|
General |
|
|
Web Client Language |
19 languages Simple Chinese/English/Traditional Chinese/Spanish/Italian/ Korean/Turkish/Russian/Thai/ Polish/French/Dutch/ Hebraism/Vietnamese/Arabic/German/ Ukrainian /Portuguese/Albanian |
|
Operating Temperature |
-30℃~65℃(-22℉~149℉) |
|
Operating Humidity |
≤95%RH |
|
Storage Temperature |
-30℃~65℃(-22℉~149℉) |
|
Storage Humidity |
10%~95%RH(non-condensing) |
|
Power Supply |
DC12V±10%; PoE:IEEE 802.3at |
|
Power Consumption |
7.15W(IR OFF) ; 18.5W(IR ON) |
|
Protection |
Surge4000V; ESD6000V; IP66 |
|
Material |
Metal+plastic |
|
Boundary Dimensions |
161mm(D)x276mm(H) |
|
Package Dimensions |
260(L)260(W)465(H)mm |
|
GrossWeight |
3.8kg |
|
NetWeight |
2.1kg |
Related products
Tiandy 16MP 63X Polar Day Panoramic AEW PTZ Camera TC-H3169M
Original price was: ₨ 1,800,000.₨ 1,600,000Current price is: ₨ 1,600,000.
Tiandy I3/E/Y 2.8mm Spark Series IPC 2MP Wifi Turret Camera TC-C32XN
Original price was: ₨ 8,500.₨ 7,480Current price is: ₨ 7,480.
Tiandy I3/E/Y 2.8mm Spark Series IPC 4MP Wifi Bullet Camera TC-C34QN
Original price was: ₨ 15,000.₨ 11,200Current price is: ₨ 11,200.
Tiandy I3/E/Y 4mm Spark Series IPC 2MP Wifi Bullet Camera TC-C32QN
Original price was: ₨ 8,500.₨ 7,480Current price is: ₨ 7,480.
Tiandy I3/E/Y/2.8mm/V5.1 Spark Series IPC 2MP Wifi Bullet Camera TC-C32QN
Original price was: ₨ 8,500.₨ 7,480Current price is: ₨ 7,480.

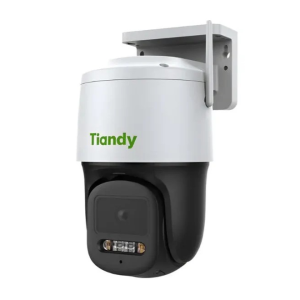

Tiandy Lite Series 4mm PTZ 3MP Wifi Camera TC-H334S
