Tiandy 5MP 30X IR PTZ Camera TC-H356S
Original price was: ₨ 175,000.₨ 160,000Current price is: ₨ 160,000.

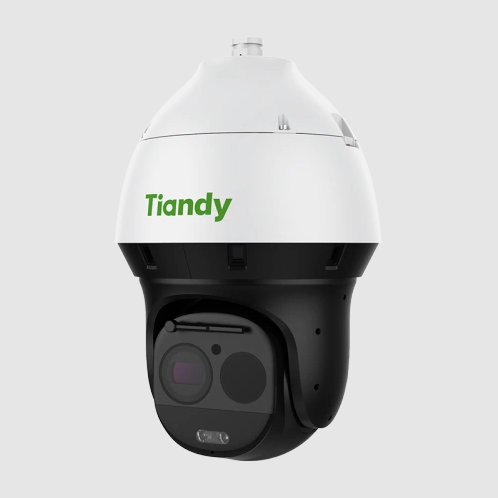

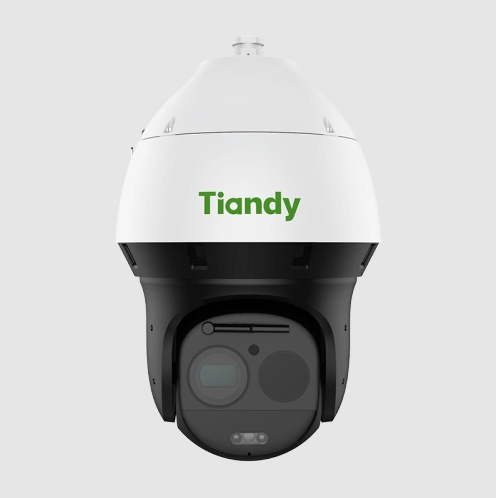

Tiandy 16MP 63X Polar Day Panoramic AEW PTZ Camera TC-H3169M
Original price was: ₨ 1,800,000.₨ 1,600,000Current price is: ₨ 1,600,000.
Spec:63X/LW/P/A/AR
Description
| Camera | |
| Image  Sensor | Panorama:1/1.8″CMOS Detail:1/1.8″CMOS |
| Min. Â Illumination | Panorama:0.0004lux Detail:0.001lux |
| Shutter  Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto Switch (ICR) |
| Smart  IR | Yes |
| WDR | Panorama:DWDR Detail:120dB |
| Lens | |
| Focal  Length | Panorama:2.8mm Detail:5.7mm～359mm |
| Optical  Zoom | Detail:63X |
| Digital  Zoom | Detail:16X |
| Zoom  Speed | Detail:<8s |
| Aperture  Range | Panorama:F1.0 Detail:F1.63~F4.94 |
| Aperture  Type | Panorama:Fixed Detail:Auto(P-Iris) |
| Field  of View | Panorama:180°±10°(H);90°±10°(V) Detail:60°~1.5°(H); 35.5°~0.87°(V); 67.5°~1.77°(D) |
| Focus  Control | Detail:Auto/Semi-auto/Manual |
| Close  Focus Distance | Panorama:200mm Detail:1000mm~3000mm |
| DORI Â Distance | Panorama: Â Detect:63m; Observe:25m; Recognize:12m; Identify:6m Detail: Detect:3800m; Observe:1508m; Recognize:760m; Identify:380m |
| Pan&Tilt | |
| Pan  Range | Detail:  0°~360° |
| Pan  Speed | Detail:  Manual Speed:0.1°～200°/s; Preset Speed:240°/s |
| Tilt  Range | Detail:-21°~90° (Default -13°~90°) |
| Tilt  Speed | Detail:  Manual Speed:0.1°～120°/s; Preset:180°/s |
| 3D Â Position | Yes |
| Preset | 500 |
| Cruise | 16,up  to 32 presets per cruise |
| Scan | 8 |
| Pattern | 8,each  with 600s memory or 1000 orders |
| Scheduled  Task | Preset,Cruise,Scan,Pattern |
| North  Point | Yes |
| Power-off  Memory | Yes |
| Preset  Freezing | Yes |
| Illuminator | |
| IR Â LEDs | Detail:11 |
| IR Â Distance | Detail:300m |
| Wavelength | Detail:850nm |
| IR Â Irradiation Angle | Detail:Yes |
| White  LEDs | Detail:2 |
| Whitelight  Distance | Detail:30m |
| Red  and Blue Alarm Flash | Yes |
| Laser  Distance | Detail:500m |
| Compression  Standard | |
| Video  Compression | Panorama:S+265/H.265/H.264B/H.264M/H.264H/Motion  JPEG Detail:S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG |
| Video  Bit Rate | Panorama:32Kbps~16Mbps  Detail:32Kbps~16Mbps |
| Audio  Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio  Sampling Rate | 8KHz/32KHz/48KHz |
| Image | |
| Max.  Resolution | Panorama:5520×2400@30fps Detail:2560×1440@30fps |
| Main  Stream | Panorama:  PAL:25fps(5520×2400,4096×1800,3840×1680,2784×1200) NTSC:30fps(5520×2400,4096×1800,3840×1680,2784×1200) Detail: PAL:25fps(2560×1440,2304×1296,1920×1080,1280×720) NTSC:30fps(2560×1440,2304×1296,1920×1080,1280×720) |
| Sub  Stream | Panorama:  PAL:25fps(2048×896,1280×560,704×320)  NTSC:30fps(2048×896,1280×560,704×320) Detail: PAL:25fps(704×576,704×288,352×288,640×360)  NTSC:30fp(704×480,704×240,352×240,640×360) |
| Third  Stream | Panorama:  PAL:25fps(1280×560) NTSC:30fps(1280×560) Detail: PAL:25fps(704×576,704×288,352×288,640×480)  NTSC:30fps(704×480,704×240,352×240,640×480) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3DNR | Yes |
| White  Balance | Auto/Semi-Auto/Manual/Sunshine/Nature  Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| ROI | Panorama:  7 Fixed Areas for Both Main and Sub Stream Detail 7 rectangular 3D fixed  focus areas,supporting 1 rectangular dynamic tracking ROI |
| EIS | Panorama:N/A Â Detail:Yes |
| OSD | 5  regions(Each region can have a maximum of 127 characters,up to 5 lines); Panorama: 16*16/24*24/32*32/48*48/64*64/72*72/96*96/128*128/adaptable size  Detail: 16*16/24*24/32*32/48*48/64*64/96*96/adaptable size |
| Defog | Yes |
| Flip | Panorama:Normal Detail:Normal/Inverted Flip |
| Regional  Exposure | Detail:Yes |
| Regional  Focus | Detail:Yes |
| Demist | Yes |
| Privacy  Mask | Panorama:8  regions Detail:24 regions |
| Feature | |
| General  Alarm | Panorama:Motion  Detection Detail:Motion Detection;Mask Alarm; Alarm Input |
| Exceptions  Alarm | Disk  Full; Disk R/W Error; Recording Exception; IP Address Conflict; MAC Address  Conflict; FTP Server Exception ; Network cable disconnected |
| Linkage  Method | Send  Email; Trigger Sound; trigger warmlight; Trigger Recording; Trigger Capture;  Notify Surveillance Center; Alarm Output |
| Video  Analytics | Panorama:Tripwire,  Double Tripwire,Heatmap, Human/Vehicle Classification Detail: Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Missing, Loitering,  Running, Parking, Crowed Detection, People Counting, Safety Helmet Detection, On Duty  Detection, Video Abnormal, Audio Abnormal, Human/Vehicle Classification |
| Auto  Early Warning(AEW) | Yes |
| Auto-Tracking | Yes |
| Face  Mode | Face  Capture |
| Face  Capture Performance | Detect  up to 32 faces at the same scene; Capture up to 16 faces at the same scene |
| Network | |
| ANR | Yes |
| Protocols | HTTP; Â HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1; DHCP; DNS; DDNS; Easy DDNS; Â NTP; SMTP; TLS v1.2; SSL; 802.1x; QoS; IPv4; IPv6; PPPoE; Unicast; Multicast; Â ARP; RTP; SRTP; FTP; SFTP |
| System  Compatibility | ONVIF(Profile S/T/G/M);  SDK; CGI; RTSP; RTMP |
| Remote  Connection | ≤7 |
| User/Host | Up  to 32 users. 4 user levels |
| Client | Easy7 Â VMS |
| Web | IE10+; Â Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Interface | |
| Communication  Interface | 1*RJ45  (10/100Base-T) |
| Audio  I/O | 1*Input; 1*Output |
| Alarm  I/O | 8*Switching;  2*Switching,Voltage≤DC24V,Current≤1A |
| Built-in  Speaker | Yes |
| Reset  Button | Yes |
| On-board  Storage | Built-in  Micro SD card slot,up to 512 GB |
| Additional  Interfaces | RS485;  BNC |
| Wiper | Yes |
| Electronic  Compass | Yes |
| General | |
| Web  Client Language | 17  languages Simple Chinese/English/Traditional Chinese/Spanish/Italian/  Korean/Turkish/Russian/Thai/ Polish/French/Dutch/  Hebraism/Vietnamese/Arabic/German/Ukrainian |
| Operating  Temperature | -40℃~70℃(-40℉~158℉) |
| Operating  Humidity | ≤95%RH |
| Storage  Temperature | -40℃~70℃(-40℉~158℉) |
| Storage  Humidity | 10%~95%RH(non-condensing) |
| Power  Supply | DC36V±25% |
| Power  Consumption | 50W(IR  OFF) ; 76W(IR ON) |
| Protection | Surge4000V; Â ESD6000V; IP66 |
| Material | Metal |
| Boundary  Dimensions | 358mm(D)x568mm(H) |
| Package  Dimensions | 565(L)485(W)750(H)mm |
| GrossWeight | 21.7kg |
| NetWeight | 14.8kg |
