Tiandy Lite Series IPC 4MP IR Turret Camera TC-C34XS
₨ 22,000 Original price was: ₨ 22,000.₨ 18,000Current price is: ₨ 18,000.
- Metal+plastic housing
- S+265/H.265/H.264B/H.264M/H.264H
- IR Range 30m
- Built-in Mic
- Support microSD/microSDHC/microSDXC card, up to 512 GB
- Support Smart surveillance
- Operating Conditions -40℃~65℃(No turning on the light), Humidity 95% or less (no condensation)
- DC12V±25%,MAX 6W, POE 802.3af,MAX 7W
- IP66

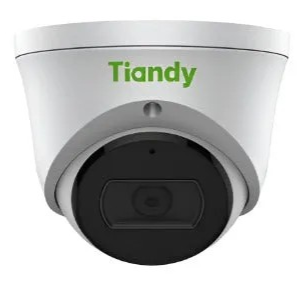

The Tiandy TC-C34XS Lite Series IPC 4MP IR Turret Camera is a high-performance surveillance solution designed to meet the demands of modern security applications. Equipped with a 1/2.8″ CMOS image sensor, it delivers exceptional image quality with enhanced clarity and detail. Its advanced infrared (IR) capabilities ensure reliable day and night monitoring, with a minimum illumination of 0.002Lux in color and 0Lux in black and white with IR illumination. The camera features an IR-cut filter with auto switch (ICR) for seamless transition between day and night modes. With a wide dynamic range (WDR) of 120dB and a high signal-to-noise ratio (S/N) exceeding 42dB, it provides clear and balanced images even in challenging lighting conditions. The fixed focal lens with a focal length of 2.8mm offers a wide field of view, covering 94.7° horizontally, 52.5° vertically, and 118.5° diagonally. Additionally, it is equipped with two IR LEDs for night vision up to 30 meters and two white LEDs with a whitelight distance of 15 meters. Supporting multiple video compression formats and audio compression options, this turret camera ensures efficient data storage and transmission. With its durable construction and versatile angle adjustment capabilities (pan: 0340°, tilt: 075°, rotate: 0~360°), the Tiandy TC-C34XS is suitable for various indoor and outdoor surveillance applications.
Key Features
- Metal+plastic housing
- S+265/H.265/H.264B/H.264M/H.264H
- IR Range 30m
- Built-in Mic
- Support microSD/microSDHC/microSDXC card, up to 512 GB
- Support Smart surveillance
- Operating Conditions -40℃~65℃(No turning on the light), Humidity 95% or less (no condensation)
- DC12V±25%,MAX 6W, POE 802.3af,MAX 7W
- IP66
Product Specifications
|
Type
|
tiandy camera
|
|
image sensor
|
1/2.8″cmos
|
|
min. illumination color
|
0.002lux@(f1.6,agc on),b/w;0lux with ir
|
|
shutter time
|
1s~1/100000s
|
|
day&night
|
ir-cut filter with auto switch (icr)
|
|
wdr
|
120db
|
|
s/n
|
>42db
|
|
angle adjustment
|
0~340°(p); 0~75°(t); 0~360°(r)
|
|
lens typ
|
fixed focal lens
|
|
focal length
|
2.8mm
|
|
lens mount
|
m12
|
|
aperture range
|
f1.6
|
|
field of view
|
94.7°(h); 52.5°(v); 118.5°(d)
|
|
detect
|
56.0m
|
|
observe
|
22.2m
|
|
recognize
|
11.2m
|
|
identify
|
5.6m
|
|
ir leds
|
2
|
|
ir distance
|
30m
|
|
wavelength
|
850nm
|
|
white leds
|
2
|
|
whitelight distance
|
15m
|
|
video compression
|
s+265/h.265/h.264b/h.264m/h.264h
|
|
video bit rate
|
32k~6mbps
|
|
audio compression
|
g.711a/g.711u/adpcm_d
|
|
audio sampling rate
|
8khz/32khz/48khz
|
