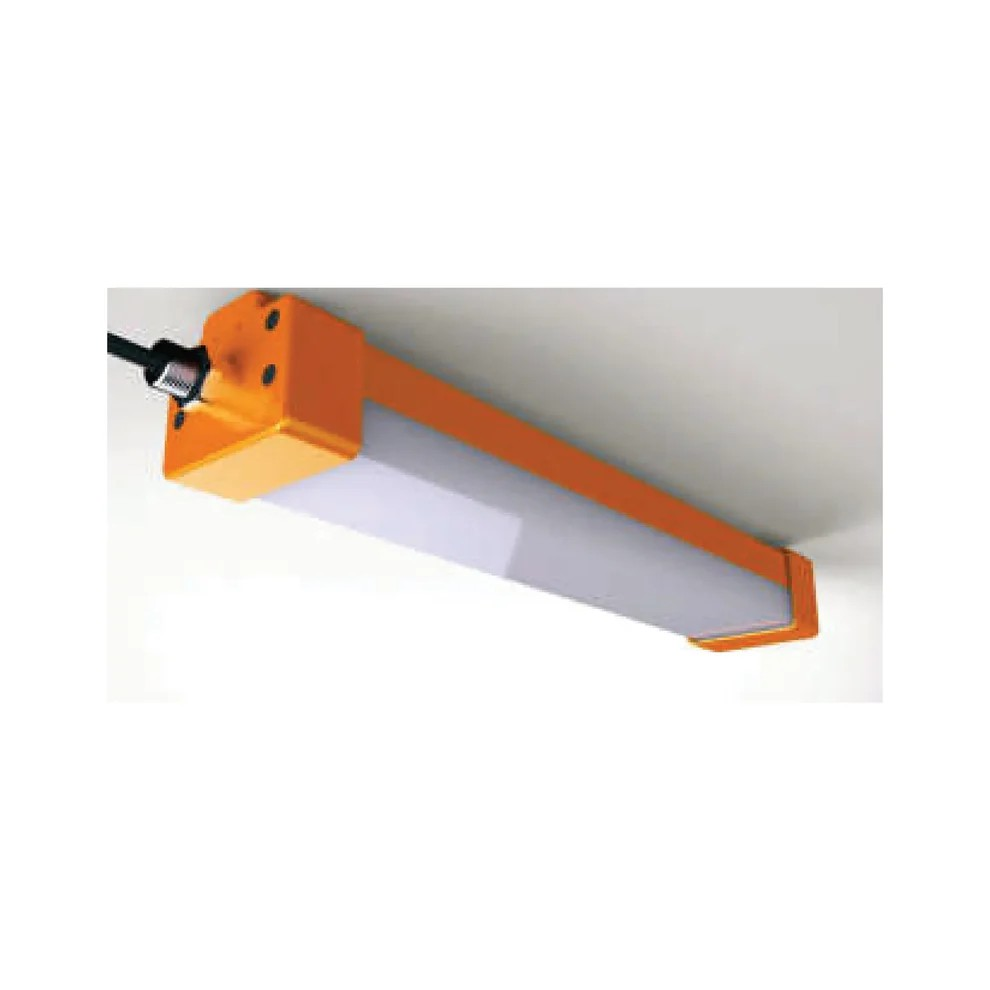

Coarts Atex Linear Ex Zone 2 Exposion Proof Led Linear Light Fixture

Atex Linear Ex Zone 2 Exposion Proof Led Linear Light Fixture is a self-extinguishing polycarbonate body with UV inhibitors. It’s a linear weatherproof ceiling LED light fixture that does more than just illuminate the space. It also boosts the quality of the light, making it more comfortable in sight. A capable driver’s compartment is integrated into the design of the morning. The led lighting comes with a Surface mounting.

Features

• Specially designed Aluminum housing with excellent heat dissipation.

• Anti-glare PC cover with milky or striped finish.

• High-quality silicon gasket.

• Approvals: TÜV IT 17 ATEX nnn X.

• Standards: EN 60079-0:2012 + A11:2013, EN 60079-7:2015, EN 60079-31:2014

• Ex-Code: II 3G Ex ec IIC T4 Gc, II 3D Ex tc III T85°C Dc IP66.

• Built-in Hitritech driver: passed 4000V Hi-pot test, with Lightening-protection, short-circuit, over-current and over-voltage protection.

• Lumen efficiency >120lm/W.

• THD <12%

• 120° Beam angle.

• Operating teperature -20°C to +50°C

• SDCM<6, CRI Ra>80.

• IP66, IK10, Class I protection rating.

Product Specifications
