Name: Clipsal AvatarOn International Socket
Brand: Clipsal
SKU: 14895
Availability: InStock

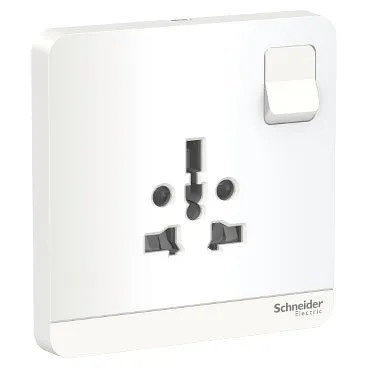

Clipsal AvatarOn International Socket

Universal 2P + 3P outlet with earthing
16A, 250V AC rated for reliable power supply
Dual socket with 1-gang design
Shuttered for enhanced safety
Durable polycarbonate with glossy finish
Surface-mounted, compact 86 x 86 mm size

The Clipsal AvatarOn International Socket is a sleek and modern switched socket solution designed to meet global power needs with reliability and safety. With a universal 2P + 3P outlet configuration and a 16A rated current, this 1-gang socket supports a wide range of plug types, making it ideal for international use in homes, offices, and commercial buildings. Its glossy white polycarbonate finish, integrated shutter mechanism, and compact surface-mounted design combine both aesthetics and functionality, while complying with IEC standards for performance and safety.

Key Features

Universal 2P + 3P outlet with earthing
16A, 250V AC rated for reliable power supply
Dual socket with 1-gang design
Shuttered for enhanced safety
Durable polycarbonate with glossy finish
Surface-mounted, compact 86 x 86 mm size
Long service life: 20,000 mechanical cycles
Complies with IEC 60884-2-3 standard
IP20 protection rating
Sleek white color for modern interiors

Product Specifications

Type	international socket
device application	power supply
device presentation	complete product
outlet poles configuration	2p + 3p (universal)
socket number	2
outlet standard description	with earthing contact
outlet standard deviation	universal
number of gangs	1 gang
service life (mechanical)	20,000 cycles
electrical durability	5,000 cycles
material	polycarbonate
surface finish	glossy
surface treatment	painted
device mounting	surface-mounted
height	86 mm
width	86 mm
depth	27.5 mm
rated current	16 a
rated voltage	250 v ac, 50/60 hz
socket additional information	shuttered
ip degree of protection	ip20
operating ambient temperature	-5°c to +45°c
storage temperature	-5°c to +60°c
relative humidity	0% to 95%
standards compliance	iec 60884-2-3
