Name: Clipsal AvatarOn Double Flat Pin Switch Socket 13A
Brand: Clipsal
SKU: 14885
Availability: InStock

Clipsal AvatarOn Double Flat Pin Switch Socket 13A

3P switch meeting British BS 1363A standard.
Rated current: 13A, IP20 protection.
Flush mount with screw fixing for easy installation.
Complies with BS 1363, MS 589, SS 145 standards.
Environmentally friendly, polycarbonate construction.
Six fashionable designs to match your style.
Patented technology for smooth operation.
Easy-mount design for quick faceplate changes.

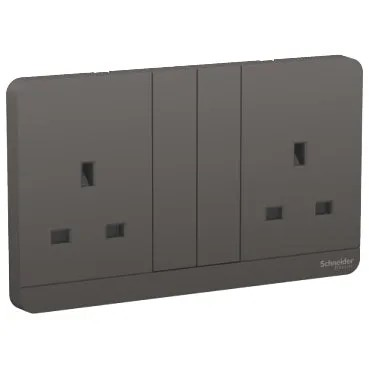

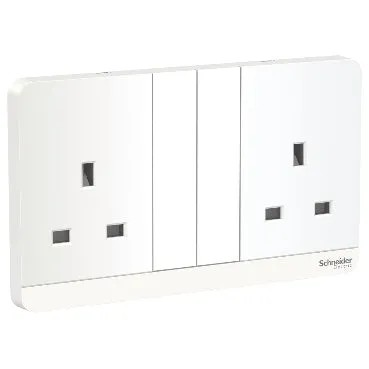

Clipsal AvatarOn switch socket E83T25_WE_G12 is a complete product in color white, dark grey, and wine gold with 2 gangs. This switch is 3P. And this device is British BS 1363A standard. And its rated current is 13A. Its matching mounting box can be recessed into the surface of the wall with flush type. The fixing mode of this device is screw. The IP rating of this device is IP20. What’s more, it well satisfied the standard of BS 1363, MS 589, SS 145. Being environmentally friendly, this switched socket is a green premium product too. The switched socket is made of polycarbonate, making it as resistant as possible. AvatarOn offers six fashionable, classic appearances, letting your home’s details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.

Key Features

3P switch meeting British BS 1363A standard.
Rated current: 13A, IP20 protection.
Flush mount with screw fixing for easy installation.
Complies with BS 1363, MS 589, SS 145 standards.
Environmentally friendly, polycarbonate construction.
Six fashionable designs to match your style.
Patented technology for smooth operation.
Easy-mount design for quick faceplate changes.

Product Specifications

Product type	switched socket
device application	power supply
device presentation	complete product
outlet poles configuration	3p with shutter
type of packing	flow-pack
rated current	13 a socket-outlet
rated operational voltage [ue]	250 v ac 50/60 hz
socket number	2
outlet standard description	with earthing contact
outlet standard	british bs 1363a
number of gangs	2 gangs
service life in cycles	20000 cycles
electrical durability	5000 cycles
connections – terminals	screw terminal
mounting	surface
fixing mode	screw
polycarbonate	grid plate
polycarbonate	surround
surface finish	glossy
surface treatment	painted mechanism cover
device mounting	surface
height	86 mm
width	146 mm
depth	31.7 mm
ip degree of protection	ip20
ambient air temperature for operation	-5…45 °c
ambient air temperature for storage	-5…60 °c
relative humidity	0…95 %
standards	bs 1363 / ms 589 / ss 145
product certifications	sirim
